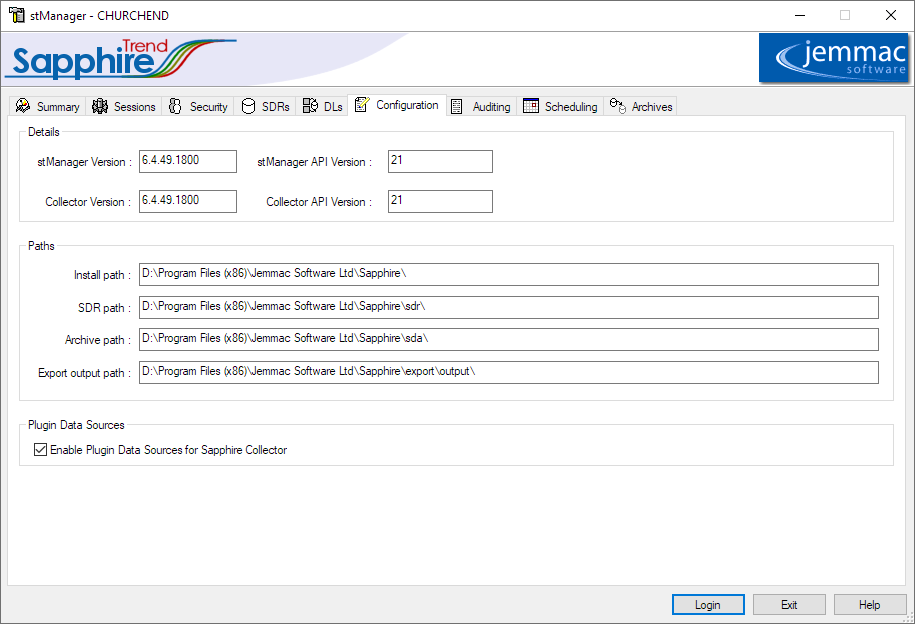

Attribute:

Description:

stManager Version

The release version of the stManager that is being run.

stManager API Version

The version of the network API used by the stManager when communicating with the Sapphire Collector.

Collector Version

The release version of the Sapphire Collector that the stManager is communicating with.

Collector API Version

The version of the network API used by the Sapphire Collector when communicating with the stManager.

Install Path

The path where the Sapphire Trend product was installed. Specified via the Installshield during the installation process.

SDR Path

The path where the Sapphire Collector will maintain the SDR's.  Specified via the Installshield during the installation process.

Archive Path

The path where Archived SDR's will be stored.

Export Output Path

The path where the stExporter will write it's output files.  Specified via the Installshield during the installation process.

Enable Plugin Data Sources...

Check this box if you wish your Collector to support Plugin Data Sources.  Plugins are Dll's that support the appropriate methods to allow the Sapphire Collector to query them for item values.  Examples are the Plugin Dll's for SNMP, Windows Performance counters, Network Ping statistics and the result of any third party application that can be run via  script.
